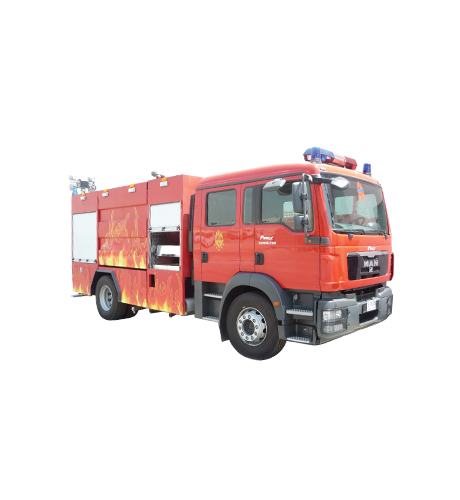

industrial firefighting vehicle
Product Description
Specification
Make: MAN-Germany
Model: MAN TGS 33.360
Drive: 6x4
Horse power: 360HP@1400-1800rpm
GVWR:33000Kg
Transmission: MAN TipMatic, Automatic Transmission
Steering: Left Hand Drive, Hydraulic Power Steering
Cabin: Medium Cab for 3 person
Wheel base:4500mm
Brakes: MAN Brakematic system with Disc brakes on front and rear
Tires: 315/80R22.5, Michelin
PTO: NMV,NH/1b
Batteries:2x12V, 175Ah
Alternator:28V/80A
Fuel Tank:400Litre
Firefighting Equipment
Water Tank : 6000 liters SS316 L
Foam Tank : 600 liters SS 316 L
Water pump : 3000 lpm@ 10 bar & 400 lpm @ 40 bar
Monitor : Electrical 500 gpm
Hose reel : 1” * 30m, electrical
Ground nozzles : 6 nos.
DCP system : 250 kg
DCP Hose Reel : 1” * 30m, electrical
Foam system : Around the pump 0-8%
Piping Materials: Stainless steel
Main valves : Pneumatic controlled
Color : RAL 3000
Accessories : standard
Couplings : BS standards
Foam tank
Capacity : 1000 liters
Material : AISI 316 stainless steel. All the fittings and the armatures are also “stainless steel”
Manhole cover : dia. 500mm with snap closure
Baffle walls : Longitudinal and transverse
Suction line : 1 ¼” to fire pump, remote controlled, lockable
Overflow : 1*Line
Draining : 1*Drain cock at the bottom
Level Indication : 1*Electronic indication at the pump panel
Water Tank
Capacity : 10000liters
Material : AISI 304 stainless steel. All the fittings and the armatures are also “stainless steel”
Manhole Cover : dia. 500mm with snap closure.
Baffle walls : Longitudinal and transverse. Transverse walls are removable in order to allow transition from one section to the other
Filling lines : 2*DN 50 Hydrants filling
1*DN 40 for filling via fire pumps, lockable
Suction line : 1*DN 110 to fire pump, lockable
Overflow : 1*line
Draining : 1*Drain cock at the bottom
Level indication : 1*Electronic indication at the pump panel
